Schmalz aluminium block suction cup VCBL-K2-HD 128x60x125 S-360-15 2-circuit
L: 128mm | B: 60mm | H: 125mm
2-Kreis | 360° drehbar
Passt auf AES, Felder, Weeke uvm.
Available now
Manufacturer no. 10.01.12.05321
Compatible with Weeke AES Felder

€648.55*
-8%
Schmalz aluminium block suction cup VCBL-K2-HD 128x75x100 S-360-15 2-circuit
L: 128mm | B: 75mm | H: 100mm
2-Kreis | 360° drehbar
Passt auf Homag, AES, Weeke uvm.
Available now
Manufacturer no. 10.01.12.05228
Compatible with Homag Weeke AES

€513.18* AI Copilot €557.99* AI Copilot (8.03% saved)
Schmalz aluminium block suction cup VCBL-K2-HD 170x128x100mm S-360-15
L: 170mm | B: 128mm | H: 100mm
2-Kreis | Längsausführung
Passt auf Homag, AES, Weeke uvm.
Available now
Manufacturer no. 10.01.12.05221
Compatible with Homag Weeke AES

€581.91*
-8%
Schmalz block suction cup VCBL-B 120x50x29mm with touch valve
L: 120mm | B: 50mm | H: 29mm
mit Tastventil
Passt auf alle Biesse Maschinen*
Available now
Manufacturer no. 10.01.12.03167
Compatible with Biesse

€91.42* AI Copilot €99.39* AI Copilot (8.02% saved)
-7%
Schmalz block suction cup VCBL-B 125x75x48mm with poppet valve
L: 125mm | B: 75mm | H: 48mm
mit Tastventil
Passt auf alle Biesse Maschinen*
Available now
Manufacturer no. 10.01.12.03170
Compatible with Biesse

€115.68* AI Copilot €124.95* AI Copilot (7.42% saved)
-8%
Schmalz block suction cup VCBL-B 130x30x48mm with poppet valve
L: 130mm | B: 30mm | H: 48mm
mit Tastventil
Passt auf alle Biesse Maschinen*
Available now
Manufacturer no. 10.01.12.03172
Compatible with Biesse

€126.96* AI Copilot €138.04* AI Copilot (8.03% saved)
-8%
Schmalz block suction cup VCBL-B 130x30x74mm with tactile valve
L: 130mm | B: 30mm | H: 74mm
mit Tastventil
Passt auf alle Biesse Maschinen*
Available now
Manufacturer no. 10.01.12.03176
Compatible with Biesse

€167.47* AI Copilot €182.07* AI Copilot (8.02% saved)
-8%
Schmalz block suction cup VCBL-K2 120x50x100mm, transverse
L: 120mm | B: 50mm | H: 100mm
2-Kreis | quere Ausführung
Passt auf Homag, AES, Weeke uvm.
Available now
Manufacturer no. 10.01.12.00126
Compatible with Homag Weeke AES

€210.13* AI Copilot €228.48* AI Copilot (8.03% saved)
-8%
Schmalz block suction cup VCBL-K2 120x50x50mm Q
L: 120mm | B: 50mm | H: 50mm
2-Kreis | Querausführung
Passt auf Homag, AES, Weeke uvm.
Available now
Manufacturer no. 10.01.12.00772
Compatible with Homag Weeke AES

€210.16* AI Copilot €228.48* AI Copilot (8.02% saved)
-8%
Schmalz block suction cup VCBL-K2 125x75x50mm D-360
L: 125mm | B: 75mm | 50mm
2-Kreis | 360° drehbar
Passt auf: AES, Weeke, Felder uvm.
Available now
Manufacturer no. 10.01.12.00629
Compatible with Weeke AES Felder

€283.49* AI Copilot €308.21* AI Copilot (8.02% saved)
-8%
Schmalz block suction cup VCBL-K2 130x30x100, transverse
L: 130mm | B: 30mm | H: 100mm
2-Kreis | quere Ausführung
Passt auf Homag, AES, Weeke uvm.
Available now
Manufacturer no. 10.01.12.00854
Compatible with Homag Weeke AES

€250.60* AI Copilot €271.46* AI Copilot (7.68% saved)
-8%
Schmalz block suction cup VCBL-K2 140x115x100mm 2-circuit
L: 140mm | B: 115mm | H: 100mm
2-Kreis | Längsausführung
Passt auf Homag, AES, Weeke uvm.
Available now
Manufacturer no. 10.01.12.00445
Compatible with Homag Weeke AES

€164.22* AI Copilot €178.50* AI Copilot (8% saved)
-8%
Schmalz Block Suction Cup VCBL-K2 140x115x100mm AS
L: 140mm | B: 115mm | H: 100mm
2-Kreis | mit Abhebesystem
Passend für: AES, Felder, Hebrock uvm.
Available now
Manufacturer no. 10.01.12.00446
Compatible with AES Felder Hebrock

€226.62* AI Copilot €246.33* AI Copilot (8% saved)
-8%
Schmalz Block Suction Cup VCBL-K2 140x115x75mm
L: 140mm | B: 115mm | H: 75mm
2-Kreis
Passt auf: Homag, AES, Weeke uvm.
Available now
Manufacturer no. 10.01.12.02136
Compatible with Homag Weeke AES

€183.89* AI Copilot €199.92* AI Copilot (8.02% saved)
-8%
Schmalz Block suction cup VCBL-K2 PRO 125x75x100mm L
L: 125mm | B: 75mm | H: 100mm
PRO-Ausführung | Längsausführung
Passend für: Homag, Weeke, IMA
Available now
Manufacturer no. 10.01.12.04090
Compatible with Homag Weeke IMA

€178.45* AI Copilot €193.97* AI Copilot (8% saved)
-8%

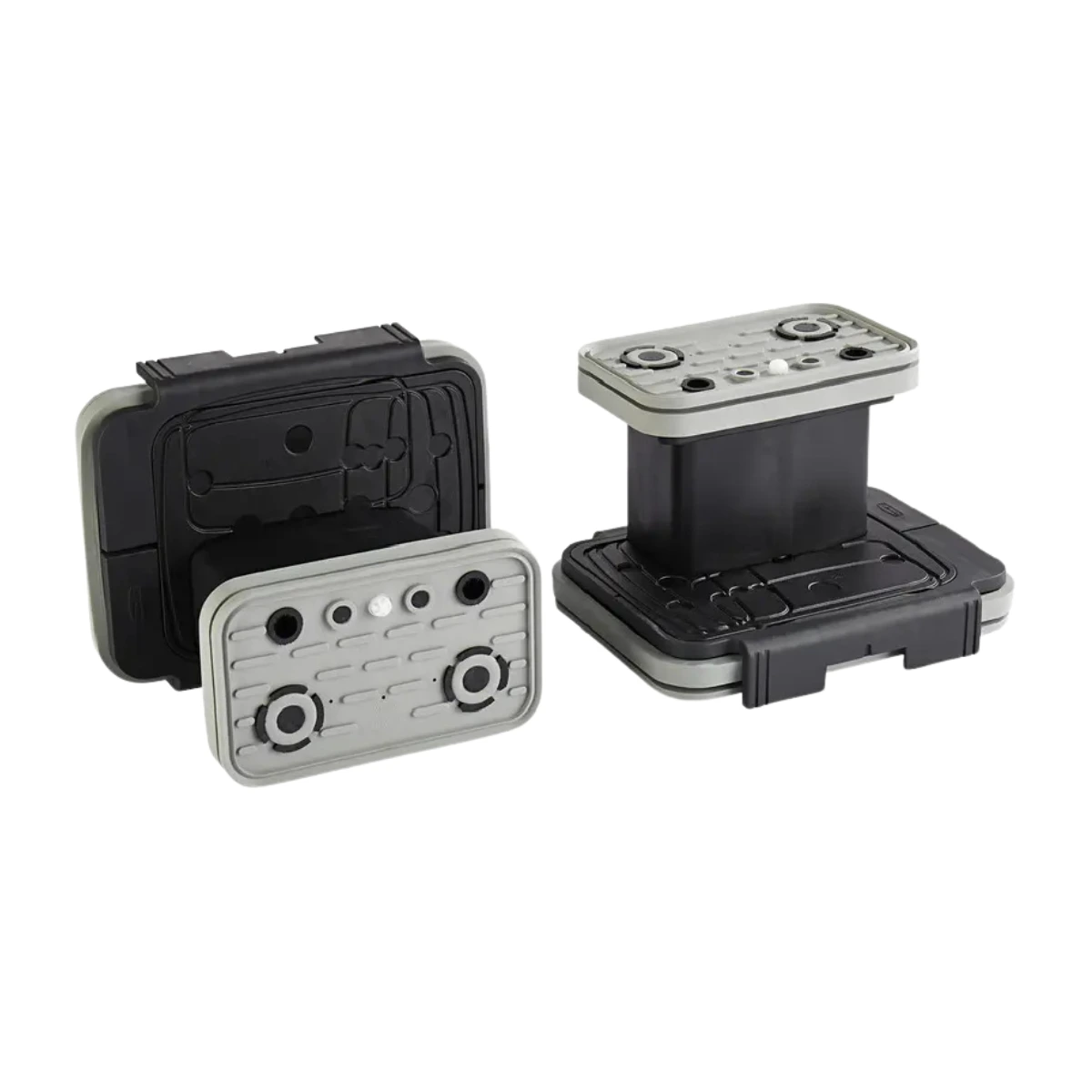

Schmalz block suction cup VCBL-K2 PRO 125x75x100mm L TV
L: 125mm | B: 75mm | H: 100mm
Längsausführung  | mit Tastventil
Passend für: Homag, Weeke, IMA
Available now
Manufacturer no. 10.01.12.04098
Compatible with Homag Weeke IMA

€204.73* AI Copilot €222.53* AI Copilot (8% saved)
-8%
Schmalz block suction cup VCBL-K2 PRO 125x75x100mm Q

L: 125mm | B: 75mm | H: 100mm
PRO-Ausführung | Querausführung
Passend für: Homag, Weeke, IMA

Available now
Manufacturer no. 10.01.12.04086
Compatible with Homag Weeke IMA

€178.45* AI Copilot €193.97* AI Copilot (8% saved)
-8%

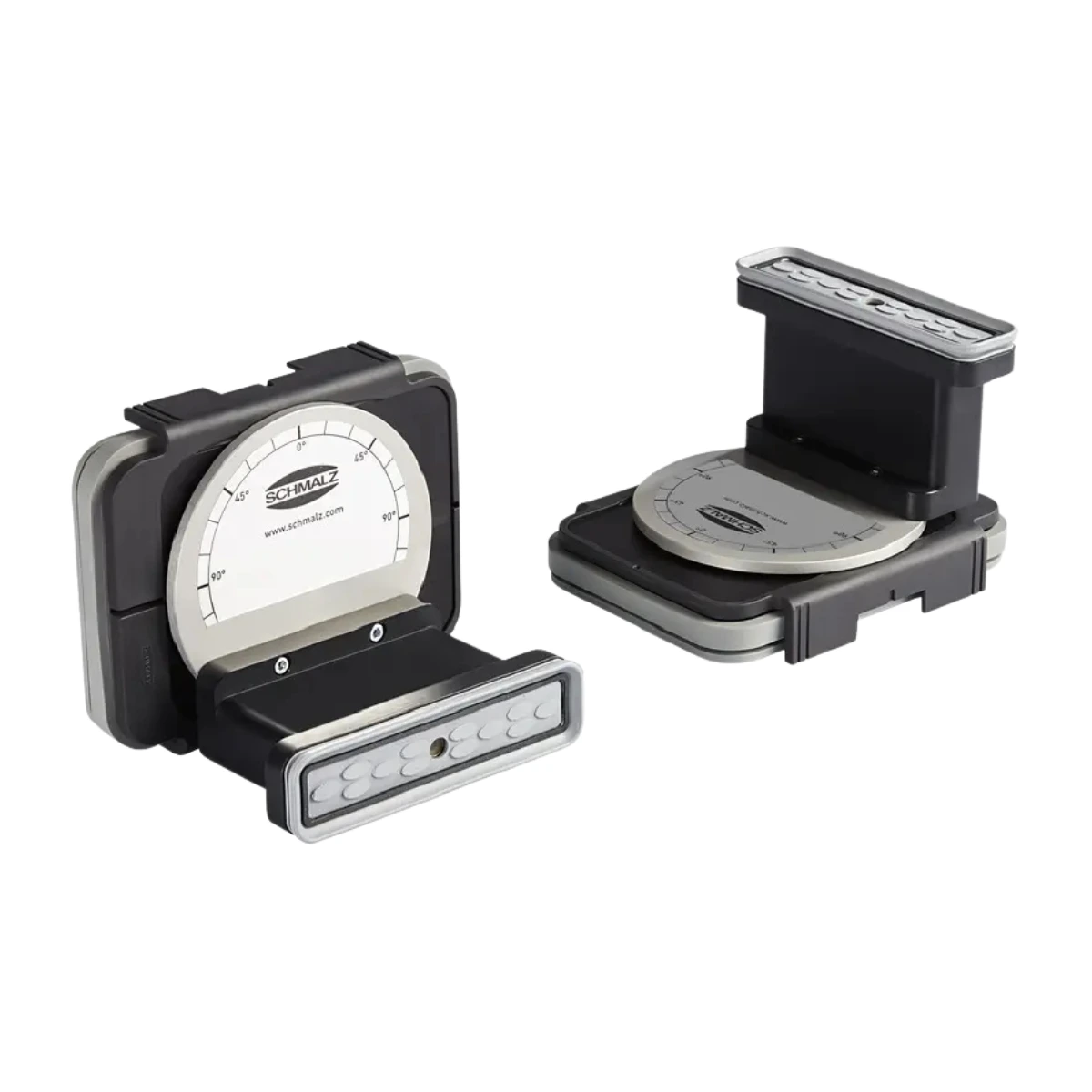

Schmalz block suction cup VCBL-K2 PRO 130x30x100 D-360
L: 130mm | B: 30mm | H:100mm
PRO-Ausführung | 360 Grad drehbar
Passend für: Homag, Weeke, IMA
Available now
Manufacturer no. 10.01.12.04647
Compatible with Homag Weeke IMA

€429.16* AI Copilot €466.48* AI Copilot (8% saved)
-8%

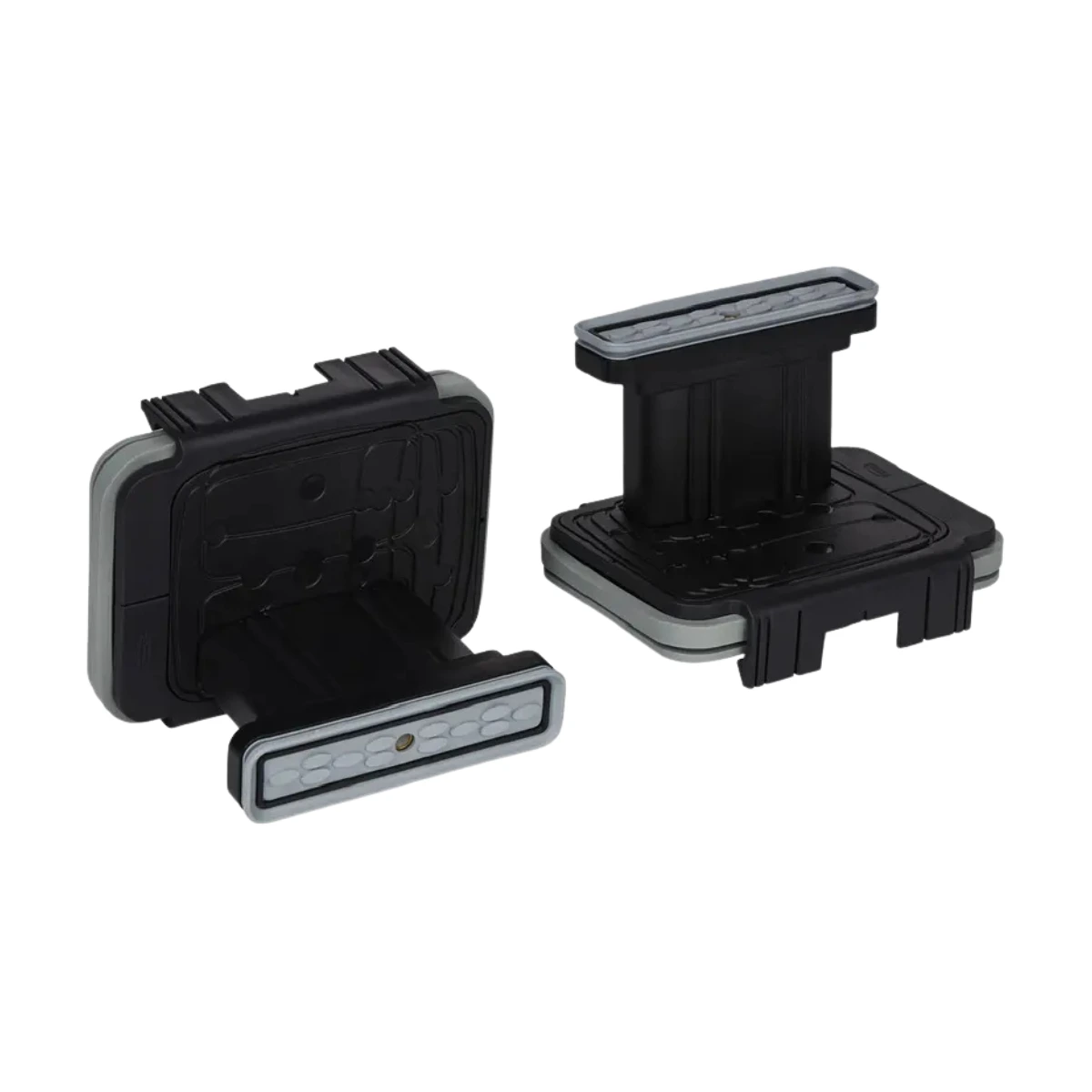

Schmalz block suction cup VCBL-K2 PRO 130x30x100mm L
L: 130mm | B: 30mm | H: 100mm
PRO-Ausführung | Längsausführung
Passend für: Homag, Weeke, IMA
Available now
Manufacturer no. 10.01.12.04092
Compatible with Homag Weeke IMA

€199.25* AI Copilot €216.58* AI Copilot (8% saved)
-8%
Schmalz block suction cup VCBL-K2 PRO 160x115x100mm TV
L: 160mm | B: 115mm | H: 100mm
PRO-Ausführung | mit Tastventil
Passend für: Homag, Weeke, IMA
Available now
Manufacturer no. 10.01.12.04093
Compatible with Homag Weeke IMA

€204.73* AI Copilot €222.53* AI Copilot (8% saved)
-8%
Schmalz block suction cup VCBL-N 120x50x52mm 30/40 TV
L: 120mm | B: 50mm | H: 52mm
mit Tastventil
Passt auf Nestingtische und Rastertische
Available now
Manufacturer no. 10.01.12.05556

€162.00* AI Copilot €176.12* AI Copilot (8.02% saved)
-8%
Schmalz block suction cup VCBL-N 130x30x97mm 30/40 TV
L: 130mm | B: 30mm | H: 97mm
mit Tastventil
Passt auf Nestingtische und Rastertische
Available now
Manufacturer no. 10.01.12.05560

€227.67* AI Copilot €247.52* AI Copilot (8.02% saved)
-8%
Schmalz block suction cup VCBL-N 145x145x132mm 30/40 AS+TV
L: 145mm | B: 145mm | H: 132mm
mit Abhebesystem | mit Tastventil
Passt auf Nestingtische und Rastertische
Available now
Manufacturer no. 10.01.12.05567

€523.20* AI Copilot €568.82* AI Copilot (8.02% saved)
-8%
Schmalz block suction cup VCBL-N 145x145x52mm 30/40 TV
L: 145mm | B: 145mm | H: 52mm
mit Tastventil
Passt auf Nestingtische und Rastertische
Available now
Manufacturer no. 10.01.12.05553

€151.05* AI Copilot €164.22* AI Copilot (8.02% saved)

Single circuit block suction cups:
Single-circuit block suction cups are the ideal solution for CNC machines equipped with single-circuit consoles. They are mechanically secured, held in place by vacuum, and clamp the workpiece securely—Schmalz’s proven single-circuit block suction cups ensure precision, a secure hold, and easy setup.

2-Kreis Blocksauger:
2-Kreis-Blocksauger wurden speziell für CNC-Maschinen mit 2-Kreis-Konsolen entwickelt. Zwei getrennte Vakuumkreise sorgen für maximale Sicherheit beim Spannen –2-Kreis Blocksauger von Schmalz bieten dabei höchste Haltekraft und Rüstkomfort.

SCM/ Morbidelli Blocksauger:
Blocksauger speziell für SCM/ Morbidelli -Maschinen sind in drei Kategorien zu unterteilen. Neben der Variante Typ 1 (S1) und Typ 4 (S4) gibt es die Baureihe Typ 6 (S6), welche auf jede standardmäßige Maschine von SCM und Morbidelli passt, die ab 2019 gebaut wurde. Dabei können die Sauger von Schmalz ebenso als Erstausstattung fungieren und bieten eine werkzeuglose und flexible Lösung als Ersatz zu den standardmäßigen Saugern auf einer SCM.

Biesse Blocksauger:
Blocksauger speziell für Biesse -Maschinen sind die ideale alternative zu originalen Biesse Saugern. Sie sind vollumfänglich kompatibel und ebenso in der Mischnutzung einsetzbar. Sie bieten außerdem viele Vorteile, die sich mit anderen Lösungen nicht umsetzen lassen. So können Sie in 15° Schritten beliebig in den Standardaufnahmen eingesetzt werden.

Häufige Fragen

Ein Blocksauger ist ein Vakuum-Spannmittel für CNC-Bearbeitungszentren. Er wird auf der Konsolentisch-Aufnahme der Maschine befestigt und hält Werkstücke aus Holz, Holzwerkstoffen oder Plattenwerkstoffen durch Vakuum sicher in Position.

1-Kreis-Blocksauger besitzen einen Vakuumkreis. 2-Kreis-Blocksauger verfügen über zwei getrennte Vakuumkreise und bieten dadurch höhere Haltekraft und zusätzliche Sicherheit.

Für Homag- und Weeke-Maschinen eignen sich die Schmalz VCBL-K1 und VCBL-K2 Baureihen. Die genaue Auswahl hängt von Ihrer Konsole und dem Vakuumsystem ab.

Ja. Für SCM- und Morbidelli-Maschinen bieten wir die Baureihen S1, S4 und S6 an. Der Typ S6 ist für alle Maschinen ab Baujahr 2019 geeignet.

Sobald Risse, Verformungen oder Verhärtungen sichtbar werden oder die Vakuumleistung nachlässt.

Ja. Die Schmalz Blocksauger sind vollständig kompatibel mit Biesse-Maschinen und können gemeinsam mit Original-Saugern verwendet werden.
