Schmalz VCBL-K2-PRO 160x115x100mm Q
€172.04*
% AI Copilot €187.00* AI Copilot (8% saved)Available, delivery time: 1-3 Tage
Wichtiges auf einem Blick
Herstellerinfos zum Download 2 Dateien
Qualität & Garantie
Product information "Schmalz VCBL-K2-PRO 160x115x100mm Q"

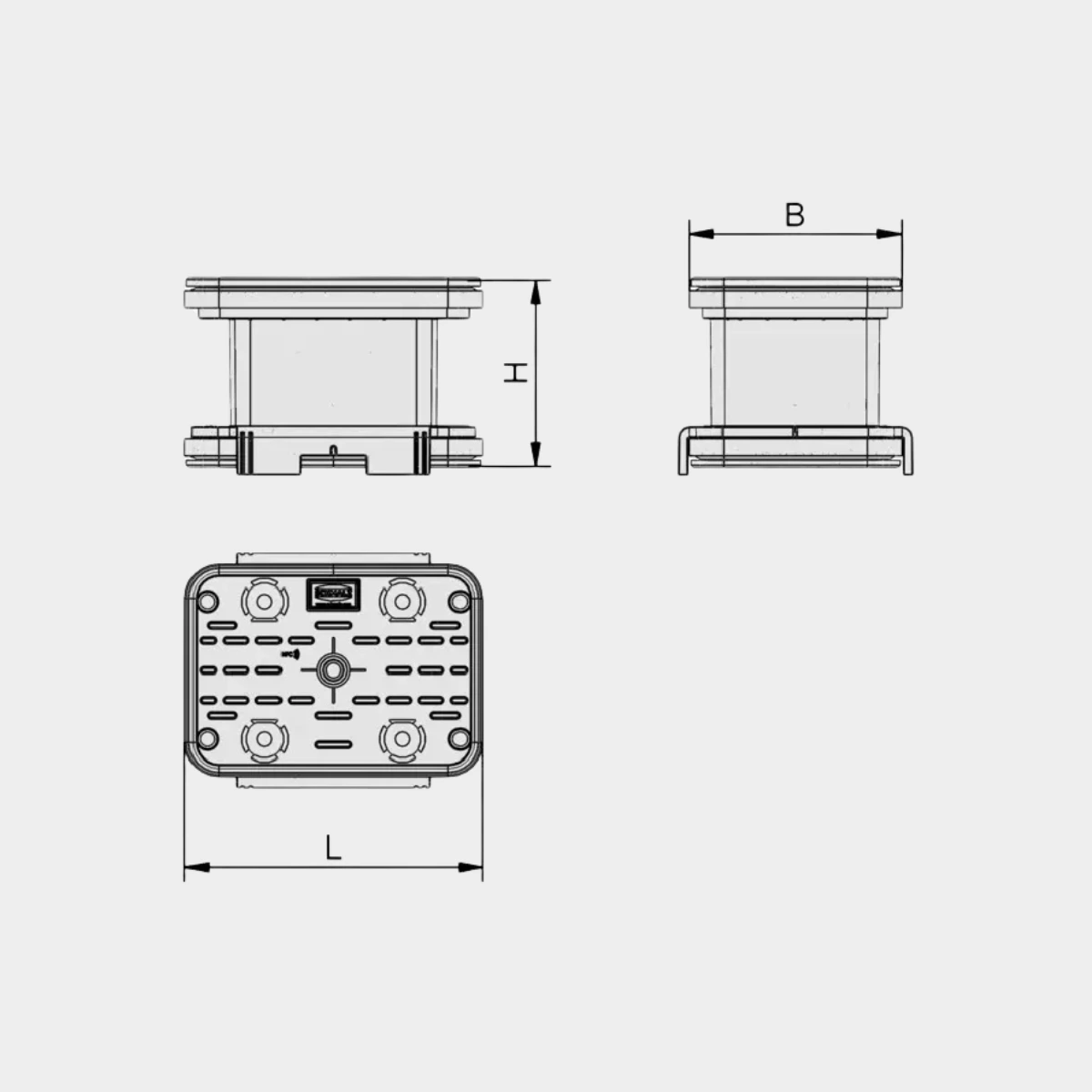

Schmalz VCBL-K2-PRO 160x115x100mm Q
Design: 2-circuit
Length: 160mm
Width: 115mm
Height: 100mm
Base material: Plastic
Cross version
Product features:
- High flexibility: The block vacuum cup is equally suitable for sensitive and thin components as well as for rough surfaces and solid wood
- Optimised for high cutting forces: Particularly when machining solid wood, mineral-based materials and laminated materials, the vacuum cup ensures secure fixing of the workpiece
- Mechanical pre-clamping: Mechanical clamping on the console enables exact-position setup, increasing process reliability
- Rotatable suction plate: The suction plate can be rotated in 15° steps, allowing the vacuum cup to be adapted flexibly to complex workpiece geometries
- Replaceable components: Both the upper and lower suction plates are available as spare parts, making maintenance easier and extending the vacuum cup's service life
| Number of vacuum circuits: | 2-Kreis |
|---|---|
| PRO: | PRO |
| Suction height: | 100mm |
